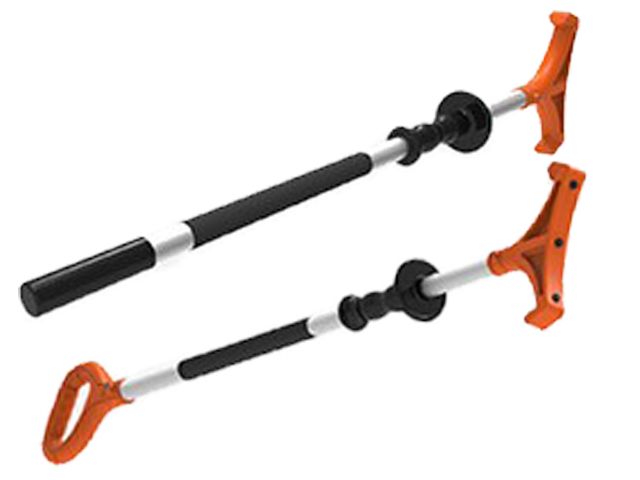

DRILL PIPE CASING
The movement of large single pipes or bundles of drill pipes can be better controlled with the use of this tool. Its arc shape profile is ideally suited to the movement of larger piping while allowing the handler to be at a safe distance.
The tool is also fitted with a tagline retrieving hook. An extremely effective tool for promoting hands-free policy in difficult operations such as casing jobs and bringing on the drill pipe.
For use by deck crews and drill floor crews in the movement of large pipes and bundles of drill pipe.

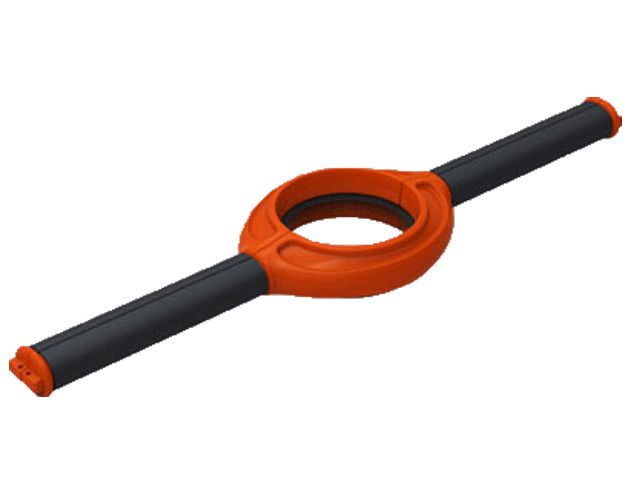

DRILL PIPE CONNECTION GUIDE
● The patented design of this unique tool finally provides companies with a solution to this notoriously hazardous activity by supplying a solution that removes the need for hand-to-pipe contact while still allowing precision and control.
● It allows the handlers to keep hands clear of potential pinch point areas.
● It gives the driller a better overall vision of the connection, thus reducing the possibility of tread damage.
● The inner radius of the device is fitted with a rubber seal that is used for the wipe down of drilling fluid when pulling out of the hole.
● When used correctly and in conjunction with other forms of PPE, this tool can also greatly reduce the handler’s exposure to harmful drilling fluids.
For exclusive use on the drill floor, this two-part tool is operated by two personnel in the make-up of drill pipe.

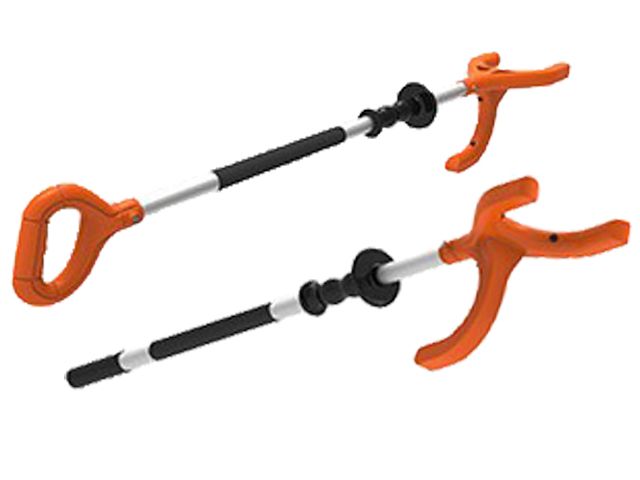

DRILL PIPE HANDLING EQUIPMENT
The movement of suspended drill pipe is a high-risk area. The Pipe Handling Tool complements the use of tag lines by providing exceptional control of the load and flexibility to the handler in the movement and landing of up to 5⅞ inch pipe. It provides excellent support in confined space usage.
For use by deck crews and drill floor crews in the movement of large pipes and bundles of drill pipe. Can also be used for the safe handling of bulk hoses and the installation and removal of BOP service lines.

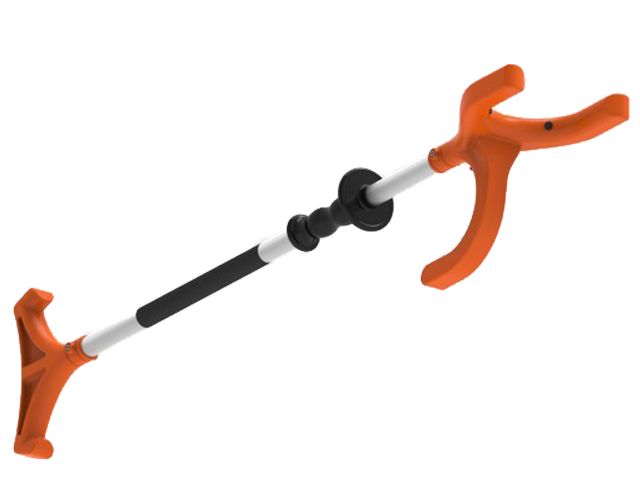

DRILL PIPE SET BACK TOOL
The Drill Pipe Set Back Tool allows the drill pipe to be safely handled and positioned in the set back area, providing maximum protection to personnel while retaining maximum control and flexibility.
Not only does this device mitigate the risk of hand injuries but it also keeps the handler’s feet clear of the set back area when landing pipe in the vertical stored position.
This Hands-Free approach also removes the risk of hazardous drilling fluids coming into contact with the handler’s skin. It is made for use by drill crew for the positioning and storage of drill pipe in the set back area of the drill floor.

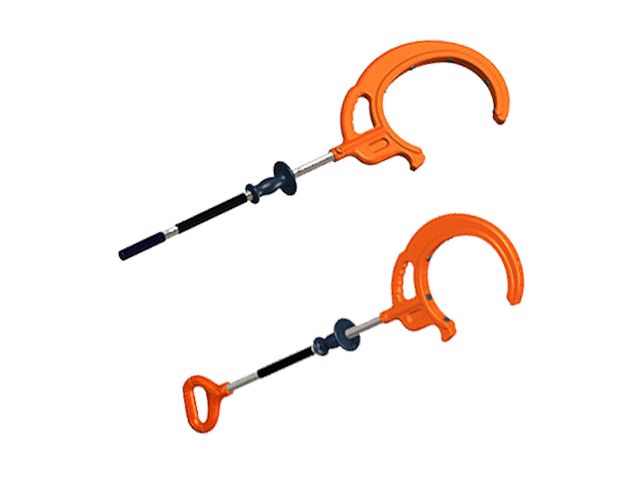

10” PRO PIPE HANDLING TOOL
The 10” PRO Pipe Handling Tool is designed to enable the operator to achieve push/pull capabilities for a wide range of suspended drill pipe (BHA) and large diameter pipes such as casing joints and hoses up to 10”. This is the only product on the market that has been developed for the handling of these high-risk activities involving large-diameter tubing.
A multi-functional tool, it is a vital component in the implementation of a Hands-Free working environment on both the rig floor and catwalk areas. Also suitable for handling a variety of drilling and fishing tools, it creates a safe distance and buffer area in the complex and hazardous operation of pipe movement.
Manufactured from medium density polyethylene and 30mm marine grade aluminum makes the PRO Pipe Handling Tool lightweight and extremely durable. It is suitable for use in harsh environments.

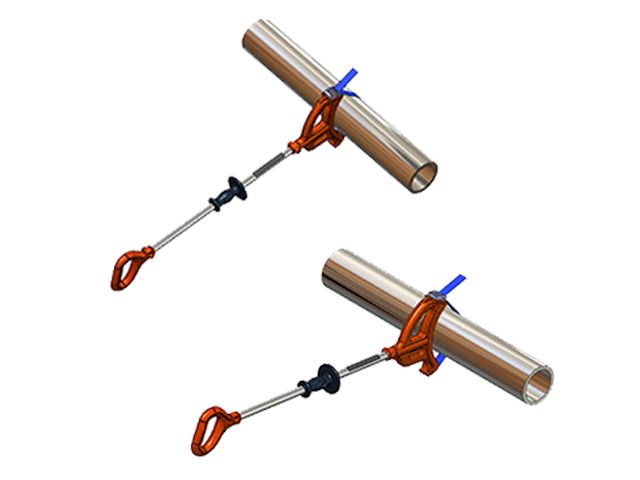

PRO PIPE GRIPPER TOOL
The PRO Pipe Gripper Tool is designed to enable the operator to achieve push/pull capabilities for a wide range of suspended drill pipe (BHA) and large diameter pipes such as casing joints and hoses ranging from 4 ” up to 13”. This is the only product on the market that has been developed for the handling of these high-risk activities involving large-diameter tubing.
A multi-functional tool, it is a vital component in the implementation of a Hands-Free working environment on both the rig floor and catwalk areas. Also suitable for handling a variety of drilling and fishing tools, it creates a safe distance and buffer area in the complex and hazardous operation of pipe movement. The shorter version available for use in manufacturing and workshop repair facilities where space is restricted.

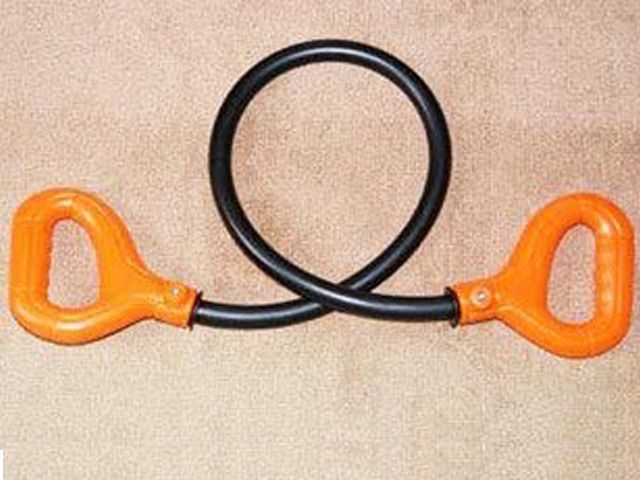

PIPE WIPE PRO
Developed to mitigate the risk of drill floor crews gaining contact with hazardous drilling fluids and cutting swarf during wipe down and rack back of drill pipe, the Pipe Wipe PRO 1200 & PRO 1500 provide drill floor crews with a user friendly and safe solution to the wipin down of drill pipe and tool joints.
Features include:
● Ergonomically designed hand grip for maximum grip, sizing allowance for use with impact gloves.
● The handgrip area incorporates a raised rubber flange that prevents splash damage and backflow of drilling fluids and provides maximum protection against accidental contact.
● Available in two sizes to accommodate smaller drill pipe right up to BHA and larger drilling tool joints.
● Constructed from a highly durable NBR 25mm rubber cord that is widely used for applications involving resistance to petroleum oils, minerals.
● Designed for operating temperatures of – 20˚C to + 80˚C.
● Excellent mechanical properties and low compression set.
